Touch sensing, as a major human/machine interface, is widely used in various commercial products such as smart watches, mobile phones, tablets and TVs.Glass milling would be a good process required especially in producing varieties shape of slot on glass surface. The capability of the CNC milling machine to make batch production would be a noteworthy advantage for glass machining. However, the demand for high quality focuses attention on the surface condition and the quality of the product, especially the roughness of the machined surface, because of its effect on product appearance, function, and reliability .Hence, the application of grinding process on the CNC milling machine is found to be an ideal solution in manufacturing complicated special products, making the machined surface quality on the glass mould superlative compared to other machining.
Touch sensing, as a major human/machine interface, is widely used in various commercial products such as smart watches, mobile phones, tablets and TVs.Glass milling would be a good process required especially in producing varieties shape of slot on glass surface. The capability of the CNC milling machine to make batch production would be a noteworthy advantage for glass machining. However, the demand for high quality focuses attention on the surface condition and the quality of the product, especially the roughness of the machined surface, because of its effect on product appearance, function, and reliability .Hence, the application of grinding process on the CNC milling machine is found to be an ideal solution in manufacturing complicated special products, making the machined surface quality on the glass mould superlative compared to other machining.
Parameter:
|
Model |
ND820-3 |
|
Application |
Mobile phone tempered glass, acrylic etc. |
|
Working Area |
285x510x85 mm |
|
Spindle Power |
1.8kw high speed spindle |
|
Spindle Speed |
0-60000RPM |
|
Spindle Clamp Size |
80mm |
|
Moving Processing Accuracy |
0.018/300mm |
|
Repeatability Positioning Accuracy |
0.001mm |
|
Max Moving Speed |
9m/min |
|
Max Machining Speed |
6m/min |
|
Lubrication System |
Automatic Oil Feeding |
|
Spindle Cooling System |
Water |
|
Drive System |
Panasonic Servo Motor and Driver |
|
Weight |
1600kg |
|
Machine Bed Material |
"Jinan qing" marble body |
Features and Advantage:
1."Jinan qing" marble body with high accuracy.
2.XYZ driver system is Japan PANASONIC servo motor and driver, the famous driver system brand in the world.
3.XYZ use PMI/HIWIN P level linear square rails and C3 level ball screw ,repeatability positioning accuracy is 0.001mm.
4.Gantry fixed and table moving design, make machine faster and more precise.
5.High speed and anti-shake spindle, make produce fine more detail.
6.Automatic oil feeding system make the machine keep precise and long life
7.Professional engineer assembling machine, guarantee machine quality.
8.The professional team provide better solution for you.

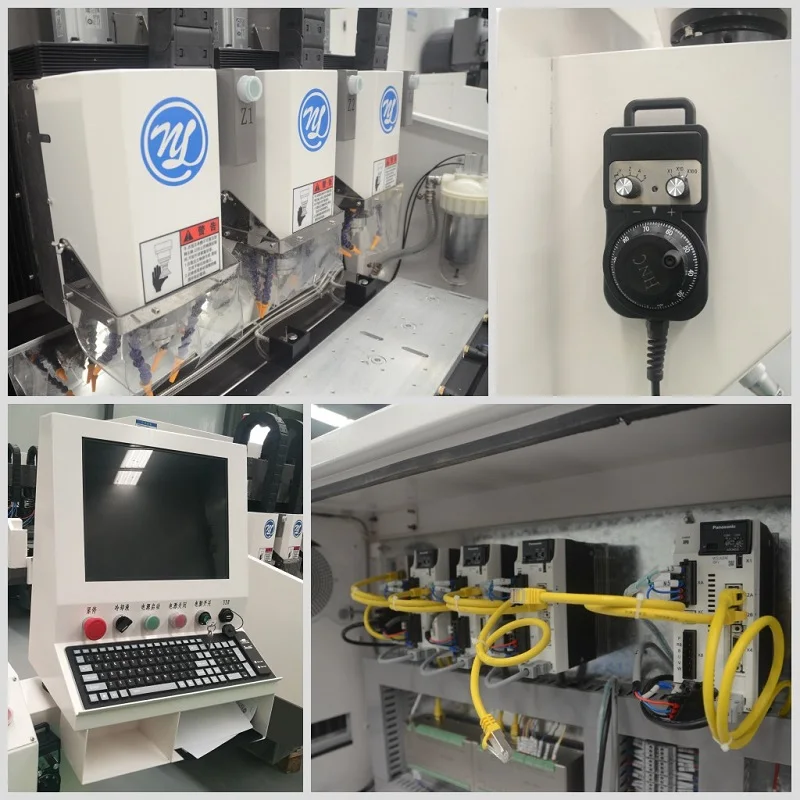

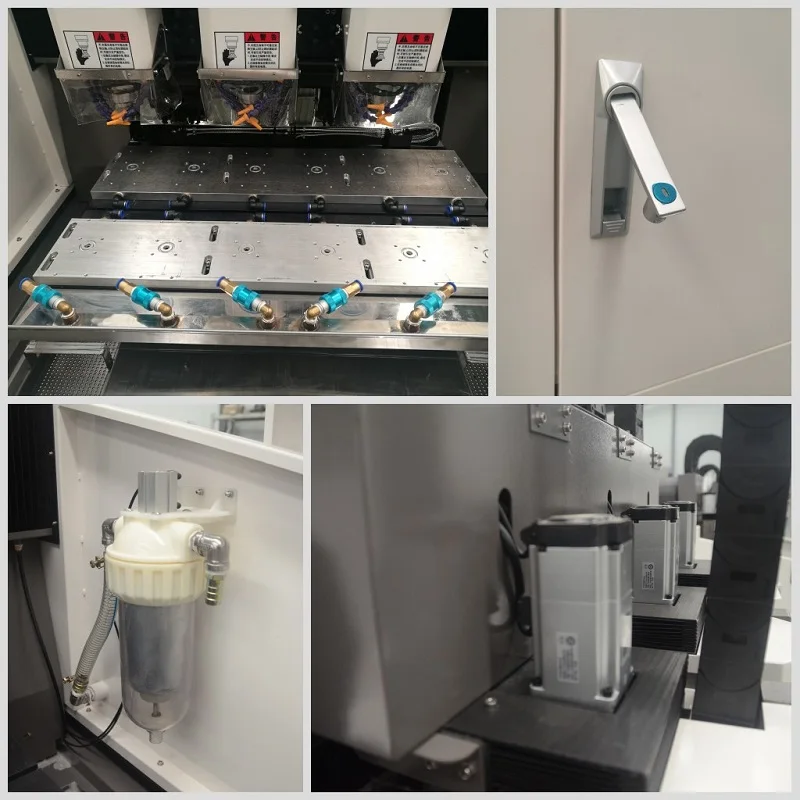

Machine detailes:

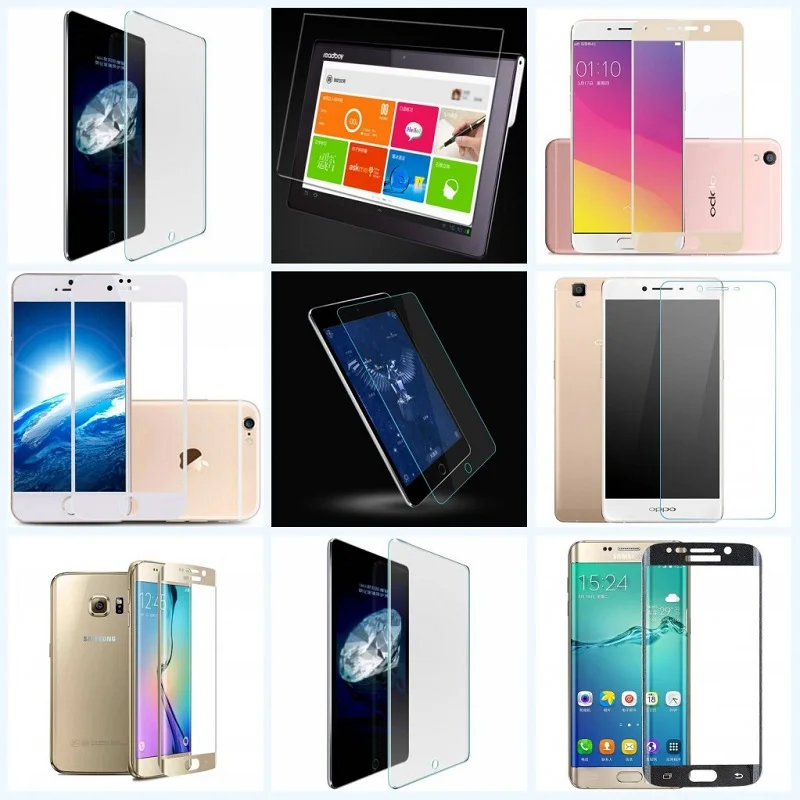

Products Show(tempered glass for mobile ,Ipad etc):
Certificate:
Firstly, the machine is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, fasten the machine into the wood case for safety and against clashing.
Thirdly, transport the wood case into the container.
Packing size:2100*1850*1870MM
Packing Weight:1600KG
1.12months guarantee of the whole machine,we will provide the consumable parts at an agency price when you need replacement .
2.English manual and CD video for machine using and maintaining will send you with the machine.
a.Hardware :1year on all parts and labor.
b.Software:Whole life on update for free.
c.Maintenance and technology support:whole life.
3.Our engineer could service you 24 hours online by Skype,YAHOO,MSN,QQ,WEIXIN,or cellphone, on weekend even on vacation
4.Our engineer could support you technology to your country if necessary.
Our engineer supplied technology support in our customers' factory.
ND Group is a high-tech enterprise specialized in R&D,production,sales,service of high precision CNC industrial system. Our key business includes high precision CNC machine ,NDT(Non Destructive Testing ) and Granite business.15 years experience in set-up and operation of production machines. Ability to determine machine is functioning properly and tooling is installed correctly. High degree of skill in inspection and working with Quality control equipment. Inspects parts against engineering prints to ensure tolerances have been maintained and promote world-class precision. Responsible for a high rate of proficiency with setup and operation of machine cell, cleanliness and organization of work area. Able to set up, operate and control quality on one or more machines. Demonstrate the ability to produce first qualified parts in a proficient manner. Proven ability to maintain a positive attitude and good work ethic.
"Machinery, Control, Inspection, Measurement, Testing--Technology Solution Expert " ---NDCNC Group.
Factory Show:
Customer visiting :
We not only supply the cnc machines to our customer but also whole line machines for mobile tempered glass.

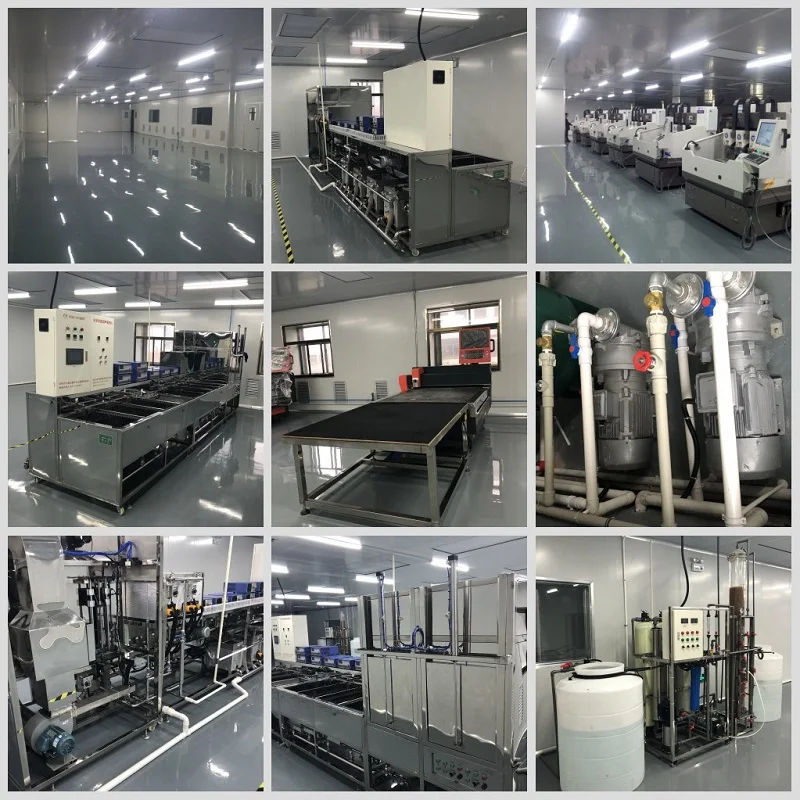

Following are our customers' factory for mobile tempered glass:
We always try our best to serve our customers .

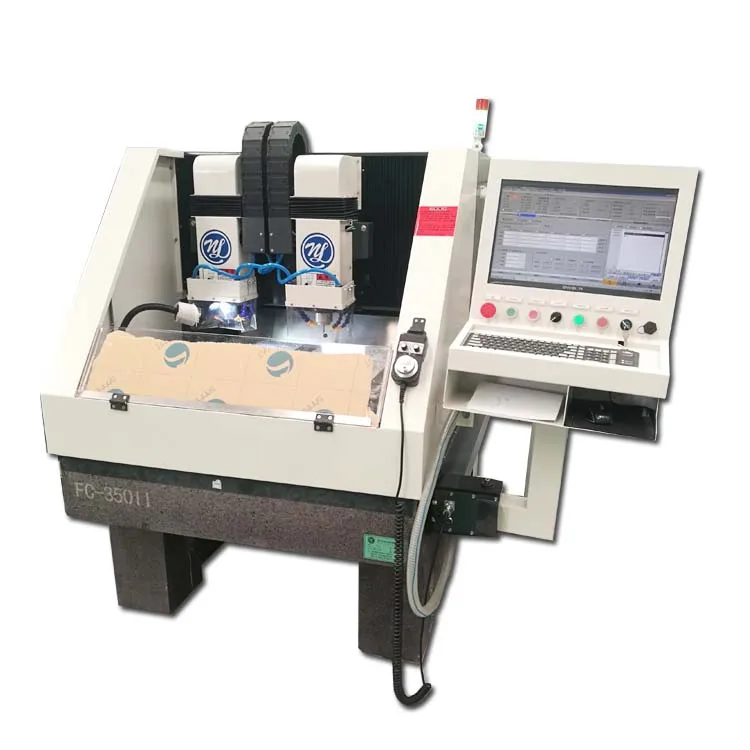

We have several models for mobile tempered glass,following is the model FC350II.
