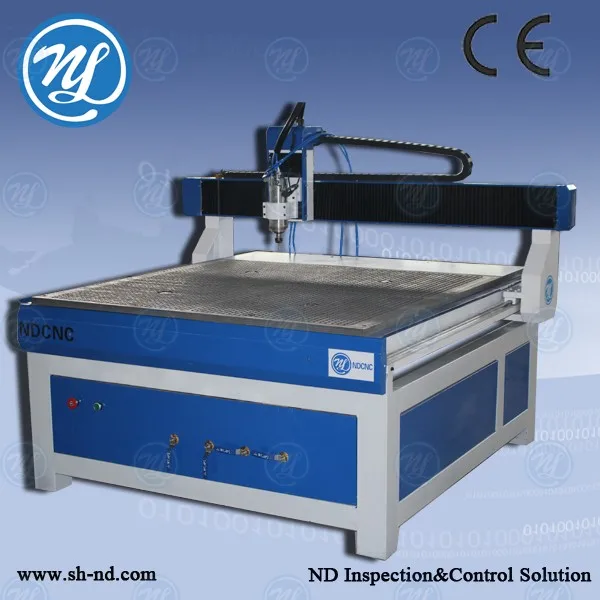

High precision cnc advertising router NDG1212 for trademark
Cnc advertising machine NDG1212 is a processing machine with high precision and high stability. It is equipped with high precision screw guide,as well as high speed spindle . The whole system is controlled by Leadshine stepper motor and driver, improving production efficiency greatly. It is used for processing of trademark, signage, nameplates, badge and decorative gift, etc.

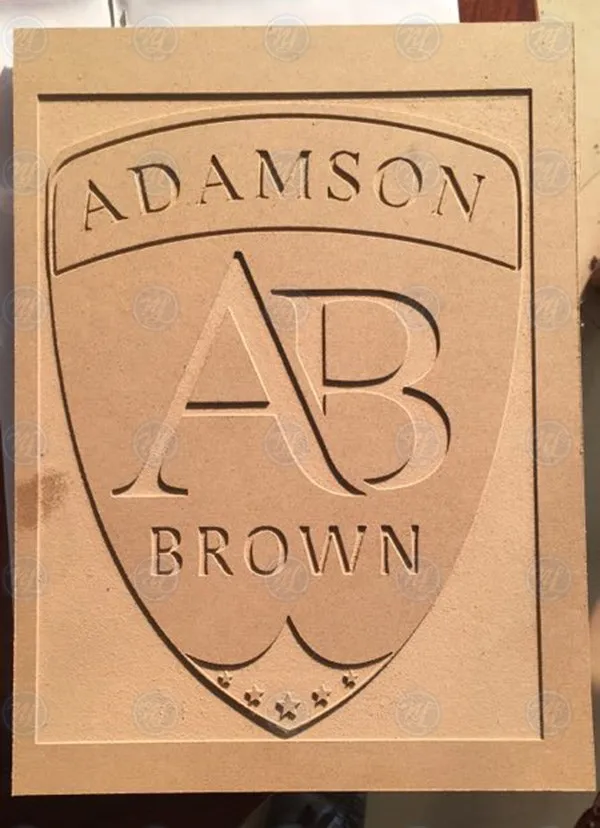

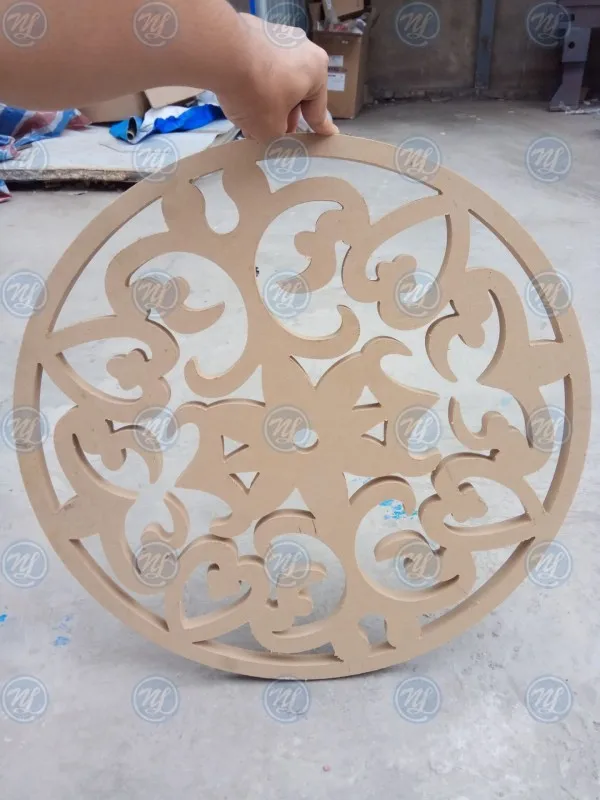

Sample
#Working size 1200*1200*120mm
#1 set 2.2 kw water cooling spindle
#Cast iron body
#X Y Z axis Taiwan TBI ball screw transmission
# Taiwan Hiwin 20 rails
#Leadshine stepper M860 motor and 450B driver
# Delta 3.7kw inverter
#Munal lubrication pump
#Filter
#RichAUTO A11 DSP system
#Tool sensor
Etc.
Parts of CNC Advertising Router NDG1212:

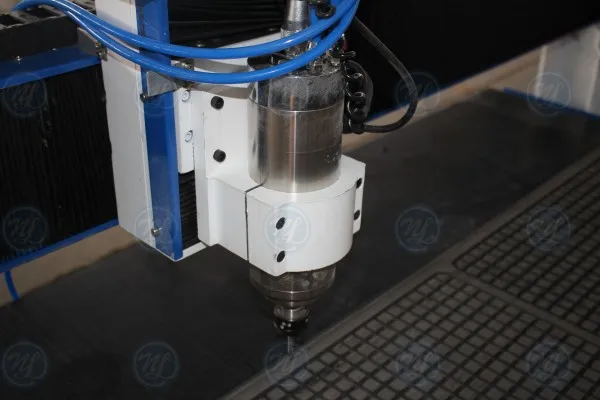

1. Changsheng 2.2kw water cooling spindle
We adopt the Changsheng 2.2KW water cooling spindle, which has a better cooling effect and has no noise ,long service life.

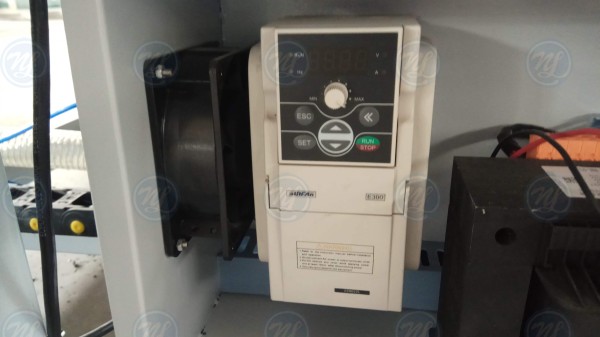

2. 3.7kw inverter
Inverter on machine is mainly used to control spindle’s start, stop, and adjust spindle speed.
Delta inverter can guarantee the high working speed and accuracy, and can realize milling with high speed, high rotating precision, good rotating with low noise, it engraves without any ripple but with smooth bottom level and clear outline.

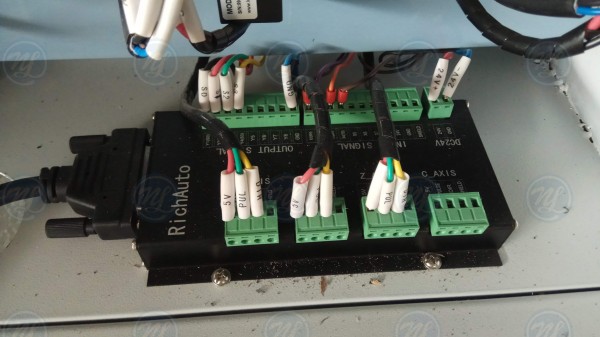

3. RichAUTO A11 DSP System
We adopt the RichAUTO A11 DSP system to control the machine. It is easily to operate.
4. Leadshine driver
Driver on cnc advertising router is mainly used to divert the stepper motor , that is to say, It is further optimized the smallest control of the stepper motor by the subdivision of the driver.
5. Taiwan Hiwin 20mm square rail guide
We adopt the world famous rail and guide manufacturer Taiwan Hiwin square rails ,self-lubricating sliding block.This ensures equal force in all directions and accuracy and strength of the machine. Compare to the round rail , the square rails have much higher precision,less wear and tear gives them the ablity to maintain high accuracy. Square rails apply to high-speed move and greatly reduce the drive horsepower the machine required. What’s more ,they can bear the load from left and right/up and down at the same time.
Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
After service
1.18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
2.Our engineer could support you technology to your contry,if necessary.
3.Our engineer coulid service on weekend even on vacation.
4.Our engineer could train you at factory for free.
5.Our engineer could service you 24 hours online by skype,yahoo,msn,QQ,or by cellphone.
Quality Control
1.Strict control machine assembly each link, ensure the machine clean and beautiful.
2.48 hours continuous working before the machine leavin factory, ensure the high quality of each machine.
English manual and CD video for machine using and maintaining will send to you with the machine.
a. Hardware: 1.5 years on all parts and labor.
b. Software: Whole life on update for free.
c. Maintenance and technological support: Whole life.
Warranty
1.In the process of production , our professionaltechnical engineers inspect the processing to ensure the quality of products.
2.Every machine mustbe tested before delivery for 8 hours, all of them are absolutely qualified.
3.18 months guarantee of the whole machine.
4. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
5. We will provide the consumable parts at an agency price when you need replacement.
6. Our staff can be sent to your company to install or adjust if necessary.
Our factory
Introduction of company
ND Inspection & Control Solution(NDICS) locates in Shanghai; Have factory in Jinan; Have R&D/design/show room in Shenzhen.
Our key business includes Glass cutting milling machine, Precision Engraving Machine, Granite Precision Measuring tools, Non Destructive Testing equipment and Industrial Design Service.
NDICS focus on granite machinery and precision engraving machines research, development, manufacturing and selling.The granite machinery includes granite rulers, granite plate, granite triange rulers, rectangle rulers, granite measurement seats and etc. The engraving machines' main components are "Jinan Black" granite which is from a mountain belonging to Tai Mountain Chain. The "Jinan Black" granite has 2.7 billion years history and it belongs to basalt stone. "Jinan Black" is one of the best granite to make precision instruments and mechanical components. NDICS has 4 series, several kinds of engraving machine which is mainly used for Mobile phone window , Mobile phone keys cutting, Electronic fixture ,Glasses Ultrasonic probes, Watches and Locksets engraving and manufacturing. ND ICS engraving machines could meet high precision requirements, it will be used in more and more segments.
As authorized China representatives of several well-known International NDT and Physical&Chemical equipment manufacturers, NDICS offers technical solutions of Control, Inspection, Measuring and Testing for customers. Our solution could be used in Aviation, Military, Rail, Auto, Oil&Gas, Shipping, Nuclear, Special Inspection, Electronics and Precision Manufacturing Industries.
