Economical CNC router with rotary NDM1325
NDM1325 with rotary is a processing machine with high precision and high stability. It is equipped with high precision screw guide,as well as high speed spindle and ratary. The whole system is controlled by servo motor and driver and the multi-process of 3D processing are completed through programming, improving production efficiency greatly. It is used for processing of advertising industry,woodworking industry, artwork industry, soft-metal industry and electrical products, etc.
Application industries of CNC router machine with rotary NDM1325
Application range as follows: solid wood furniture, mahogany furniture, MDF paint door, solid wood, composite wood,cupboard door and window,bedside cabinet, folding screen, the advertising industry, artwork industry, etc.
Sample pictures:
CNC router with rotary NDM1325
#Working size 1300*2500*200mm
# Changsheng 3.0kw air cooling spindle
#Heavy duty body
#X Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
# Taiwan Hiwin 20 rails
#Vacuum table
#RichAUTO A11 DSP system
#Leadshine stepper motor and M860 driver
#Protect shell
# Delta 3.7kw inverter
#Filter
#Tool sensor
Etc.
Features and Advantage
1.Heavy duty body
The machine body is made of 8mm steel welded, hundreds of times the shock failure to make the body still maintain good stability and accuracy in the process of long time use.
2. Leadshine stepper motor and M860 driver
Adopting one of the best brands in the world high-torque Leadshine stepper motor and M860 driver system, having steady working capability and high precision, goog stability and acceleration performance.It runs smoothly, no vibration phenomenon even in the low speed, the output torque of the servo motor will not decrease with the speed, and a higher speed will not drop sharply.
3. Taiwan Hiwin rails
We adopt the world famous Taiwan Hiwin square rails and self-lubricating block. Equal force in all directions in the engraving process can ensure mechanical precision and strength.
4. 3.0 kw air cooling spindle
The spindle is cooled through the fan in the air cooling spindle. No water pump, relatively convenient to use.
5.Delta 3.7kw inverter
Inverter on machine is mainly used to control spindle’s start, stop, and adjust spindle speed.
Delta inverter can guarantee the high working speed and accuracy, and can realize milling with high speed, high rotating precision, good rotating with low noise, it engraves without any ripple but with smooth bottom level and clear outline.
7. RichAUTO A11 DSP system
Adopting RichAUTO A11 DSP system, it is easy to learn and operate.
Main parts of the CNC router with rotary machine NDM1325

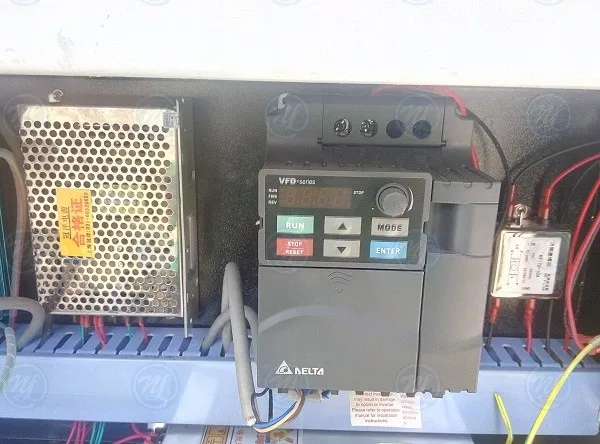

Delta 3.7kw inverter
Leadshine stepper motor
RichAUTO A11 DSP system
Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
After service
1.18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
2.Our engineer could support you technology to your contry,if necessary.
3.Our engineer coulid service on weekend even on vacation.
4.Our engineer could train you at factory for free.
5.Our engineer could service you 24 hours online by skype,yahoo,msn,QQ,or by cellphone.
Quality Control
1.Strict control machine assembly each link, ensure the machine clean and beautiful.
2.48 hours continuous working before the machine leavin factory, ensure the high quality of each machine.
English manual and CD video for machine using and maintaining will send to you with the machine.
a. Hardware: 1.5 years on all parts and labor.
b. Software: Whole life on update for free.
c. Maintenance and technological support: Whole life.
Warranty
1.In the process of production , our professionaltechnical engineers inspect the processing to ensure the quality of products.
2.Every machine mustbe tested before delivery for 8 hours, all of them are absolutely qualified.
3.18 months guarantee of the whole machine.
4. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
5. We will provide the consumable parts at an agency price when you need replacement.
6. Our staff can be sent to your company to install or adjust if necessary.
Factory
ND Inspection & Control Solution(NDICS) locates in Shanghai; Have factory in Jinan; Have R&D/design/show room in Shenzhen.
Our key business includes Glass cutting milling machine, Precision Engraving Machine, Granite Precision Measuring tools, Non Destructive Testing equipment and Industrial Design Service.
NDICS focus on granite machinery and precision engraving machines research, development, manufacturing and selling.The granite machinery includes granite rulers, granite plate, granite triange rulers, rectangle rulers, granite measurement seats and etc. The engraving machines' main components are "Jinan Black" granite which is from a mountain belonging to Tai Mountain Chain. The "Jinan Black" granite has 2.7 billion years history and it belongs to basalt stone. "Jinan Black" is one of the best granite to make precision instruments and mechanical components. NDICS has 4 series, several kinds of engraving machine which is mainly used for Mobile phone window , Mobile phone keys cutting, Electronic fixture ,Glasses Ultrasonic probes, Watches and Locksets engraving and manufacturing. ND ICS engraving machines could meet high precision requirements, it will be used in more and more segments.
As authorized China representatives of several well-known International NDT and Physical&Chemical equipment manufacturers, NDICS offers technical solutions of Control, Inspection, Measuring and Testing for customers. Our solution could be used in Aviation, Military, Rail, Auto, Oil&Gas, Shipping, Nuclear, Special Inspection, Electronics and Precision Manufacturing Industries.
