1610 cutting acrylic laser /leather co2 laser wood cutter

NDJ1610 laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is stable, the engraving speed is high, and the precision is high.

The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of materials (marble, black or colored acrylic etc). It can also engrave many signs, marks. It is a machine with high cost performance.

Applicable materials

Non-metal materials such as acrylic, double color board, Plexiglas,

Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.

Applicable industries

Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo

and wooden product, garment and leather, embroidery, decoration and upholster industry.

Characteristics

1)  Japanese technical engine running, making sure the products to run at high aped and high precision.

2) The original binding beeline lead rail, the mechanic is running well and stable.

3) Channel feeding, the feeding can be unlimited.

4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.

5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.

Name:	NDJ1610
Processing area	1600*1000mm
Laser power	60W,80W,100W,130W,150W
Laser type:	Sealed Co2 glass laser tube
Cooling mode:	Water cooling and protection system
Resetting positioning accuracy:	±0.01mm
Compatible Software:	Laser cut 5.3, CorelDraw  AutoCAD  Photoshop
Engraving speed	1-60000mm/min
Cutting speed	1-10000mm/min
Cutting thickness	0-25mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system:	Red dot
Interface:	USB
Minimum shaping character	letter 0.5mm, Chinese 0.5mm
Support graphic format	DST, PLT, BMP,AI,HPGL
Gross power	1000-2000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Circulation water cooling
Working voltage:	AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature	0-45C
Operating humidity:	5-95%
Driving system	stepper(Option servo motor)
Option:	Up and down table, rotary attachment
Packing:	wooden box
Guarantee time:	1 year, laser tube 10 months
Option:	Rotary attachment for column materials
Operation:	Video to tell customer how to operate the machine

ND Inspection & Control Solution(NDICS) locates in Zhangjiang High-tech Park in Pudong, Shanghai and factory in Jinan CITY. We have CNC machine business division,NDT(Non Destrctive Testing ) business division and Granite business division, Our key business includes Precision Engraving Machine, CNC router , Granite Precision Measuring tools, Granite Mechnical Components, Non Destrctive Testing equipment and Industrial Design Service.
ND group CNC machine business division products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc. "NDCNC” is well known not only in China, but also in Korea ,Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
"Machinery,Control,Inspection,Measurement,Testing--Technology Solution Expert " ---NDCNC Group

Factory show

Certification

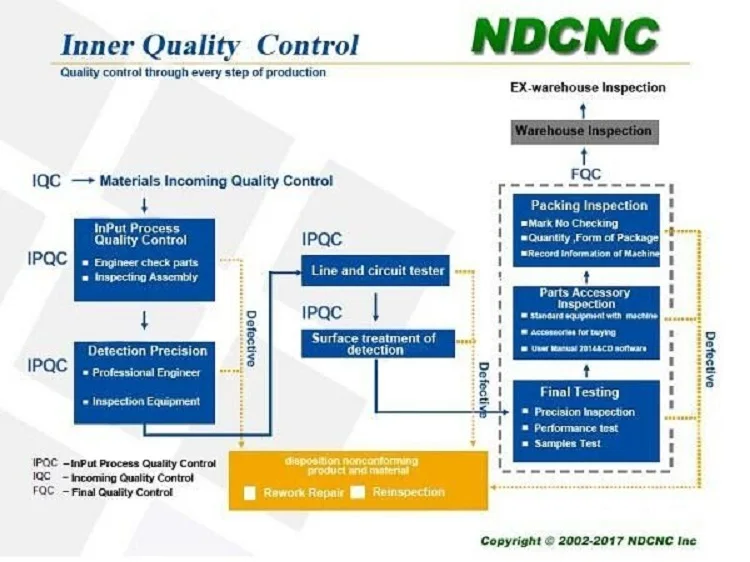

Inner quality control system

In order to show you our best quality ,please allow me to introduce our quality control system as follows:
#.In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#.Lifetime maintenance free of charge.
#.Machine has been adjusted before delivery.
#.Our staff can be sent to your company to install or adjust if necessary.

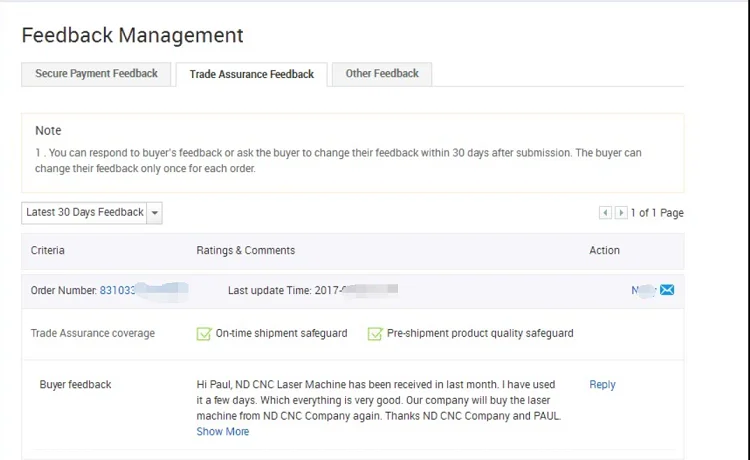

Buyer feedback
